Honda Vision 50 ManualHonda Vision 50 PriceHonda Vision 50 ManualHonda Vision 50 Manual

Scooter Userテつ xA0 manuals assisting Honda scooter owners with scooter safety, components, features, maintenance, specifications, storage guide, and cleaning can be found below. • AT125 150-125 150 ES • C90 • CD250U • CH250 • CHF50S • CHF50-S • CJ250T-CJ360T • CL250S • CM250C • CM250T • CMX250C • FES250 • FJS400D-A • FJS600DA • FJS600D-A SILVER WING • NC700D • NH80 • NSC110 • NSS300 • NH125 • NSS250S - NSS250A • NSS250SA • NSS250X NSS250EX • FJS600 SILVERWING • NIFTY 50 NQ50 • NIFTY 50 NQ50F • NVS TODAY • PCX125 • PCX150 • SCV100 LEAD • SH150 • SH300 • SK50M •.

Haynes Publishing provide manuals for a wide range of Honda Scooter models. Learn how to make DIY scooter repairs and service your Honda Scooter with our comprehensive guides. Honda vision 50cc top speed victor alvarez. Jrc Radar 2000 Manual. 2012 Honda Vision 50 ccm scooter (Honda NSC50) acceleration 0-45 km/h - Duration: 1:18.

Keep up to date with all the latest news from Honda Motorcycles! Keep up to date with all the latest news from Honda Motorcycles! Jul 13, 2016  Honda Vision 50 Manual Julia R. 2012 Honda Vision 50 ccm scooter (Honda NSC50) acceleration 0-45 km/h - Duration: 1:18.

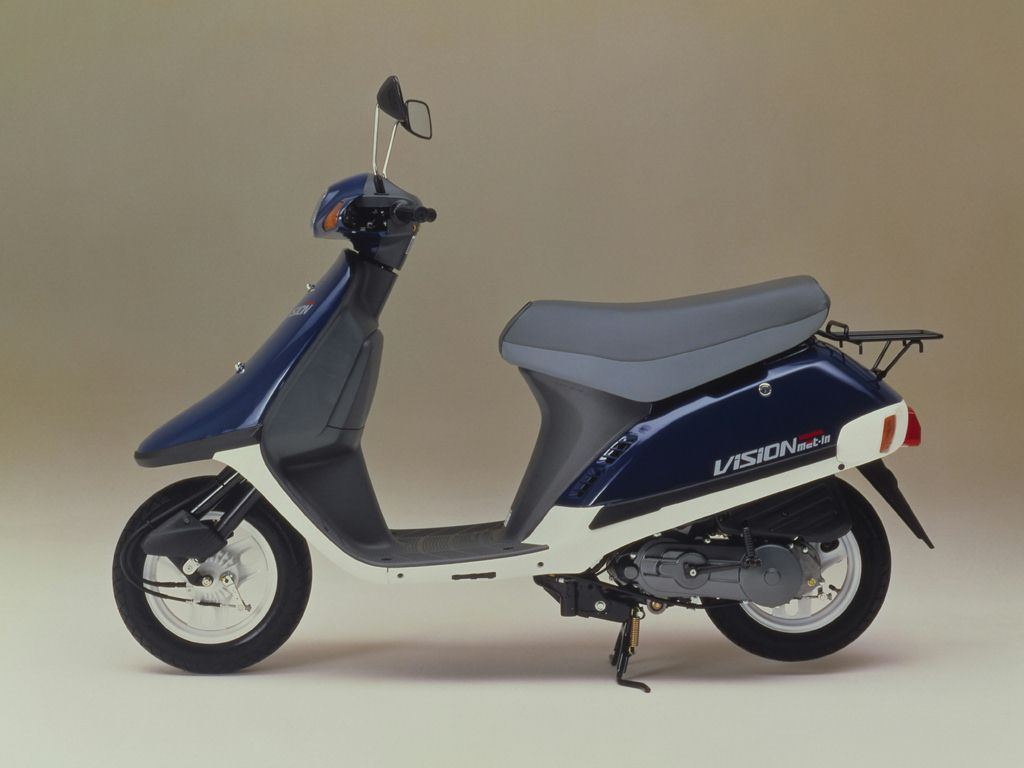

HONDA AERO 50 (NB50) The Aero 50 (NB50) was Honda’s first fully modern 50cc scooter sold in North America, thus completing the idea which started with the. Honda named this scooter the Aero 50 for the USA and Canadian markets, but elsewhere it received other names like Tact, Melody and Vision. The NB50 was introduced in North America in 1983 (except Maryland) alongside it’s larger Aero 80 sibling. Initially costing just $619, the NB50 was sold until 1987 with a major update made for the 1985 model year using a new body design and motor.

Both generations of the Aero 50 are peppy and well suited for around town use. The later model adds a great amount of storage with its glovebox (’85-’87 models) and storage in the right side panel (see the ad at the bottom of this page for a look inside). The AF05E engine found in the ’85 - ’87 Aero 50’s carried on after this scooter was discontinued inside the (Elite S) and the ’88 - ’93 SA50 ( ) scooter. The Aero 50 was a very important model for Honda, as it marked the beginning of their modern scooter era.

This scooter featured plastic body panels, electric start, automatic oil injection, automatic choke and a ‘V-matic’ (CVT) transmission. This initial generation of the Aero 50’s used a similar engine design to the Honda Spree, but the Aero 50 utilized a multi-ratio variator to put the power to the rear wheel, whereas the Spree used an inferior single speed design. A properly running Aero 50 tops out at about 37-40mph and the ’85 to ’87 models can be modified to go quite a bit faster. Check out for performance parts. In stock form, a properly running Aero 50 achieves at 60-65 mpg. The Aero 50 has a fairly small gas tank though (0.8 gal or 1.0 gal for later models) so range is limited. If you stop to fill it up as the fuel gauge dips into the red you are going to get about 0.6 - 0.8 gallons (2-3 litres).

This corresponds to a range of 36 - 50 miles. Computer Science For 7th Sem Lab Manual on this page. That’s not really long distance touring material, but you could use the rear rack to carry a jerry can. Second Generation Honda’s introduced a brand new generation of NB50 for 1985.

The new design included an updated look, a new engine (AF05), a glovebox and a few other tweaks to make it more comfortable. Honda changed the style by removing the front rack, integrating the rear lights into the scooters’ body and by making the styling more ‘flowy’. Accordingly, all of the body panels are different. To make the Aero 50 more comfortable, Honda added a plusher leading-link front suspension, in addition to wider bodywork and a bigger seat. Lastly, Honda replaced the existing ‘cubby hole’ storage spots on either side of the main frame tube with a proper locking glovebox. On the negative side, Honda ditched the kickstarter and the throttle controlled oil pump for ‘85 (both of which would return for ’86).

The early style (’83 - ’84) is shown in the first two photos on this page, while the updated style is shown above left. Honda also gave the gauges a full overhaul. Both generations are well laid out but the earlier setup wins the style award. The earlier gauges have a neat vintage look to them (below left) that is reminiscent of Honda’s mopeds, whereas the newer gauges (below right) are well laid out but have a less unique look. Honda made a few changes for 1986 to the new (for ’85) engine. Most notably, Honda beefed up the crankshaft and changed the intake manifold and reed cage to a 4 bolt design.

The ’86 intake manifolds use a different bolt pattern on the engine so you can’t switch between years. Honda also brought back the kickstarter and throttle controlled oil pump for ’86.

Performance Modifications For performance, the 1986 and 1987 Aero 50’s are the best years because of their features and because of the potential to upgrade them to gain more speed. You can upgrade an ’85 with a big bore kit, but the different intake manifold pattern means that you are pretty much stuck with the stock carb, reeds and intake unless you get into custom work.

For the '86-'87 models you can get big bore kits up to 47mm bore (65cc), intakes, reeds, carbs and even gears. Top speeds in the 50-55mph range are possible. And are the places to go if you want to learn more about this. The ’87 Elite 50 (SE50) and ’88-’93 Elite LX/SR (SA50) share a virtually identical engine, so you can use parts intended for these scooters as well. I believe only the intake manifold bolt pattern is different between the Aero 50 and these small Elite’s.
